CAD Design

Our products

We develop and support
a series of total solutions and products

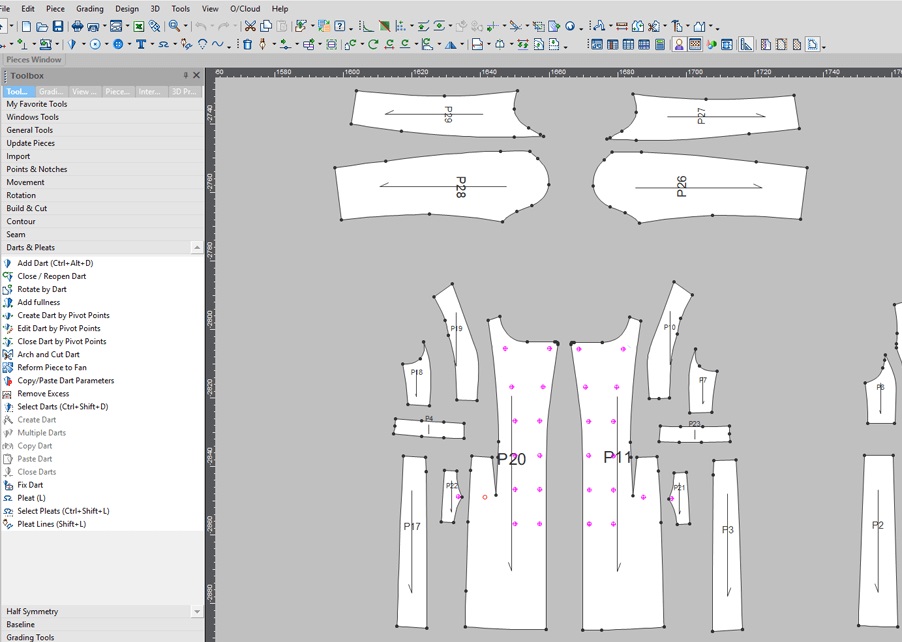

Pattern Design PDS

An easy-to-use pattern design and grading, instantly adaptable to the needs of each company by Optitex. PDS offers productive applications destinated for the design of new models but also the transformation of the already existing ones.

The great range of applications that the program disposes can fulfill the needs of the creation of the most complicated models

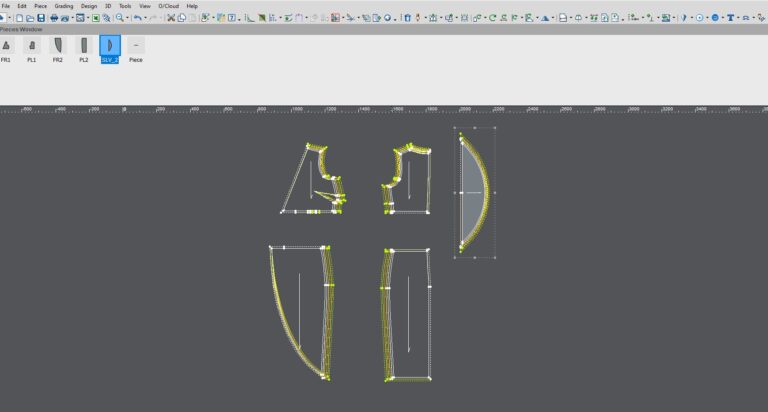

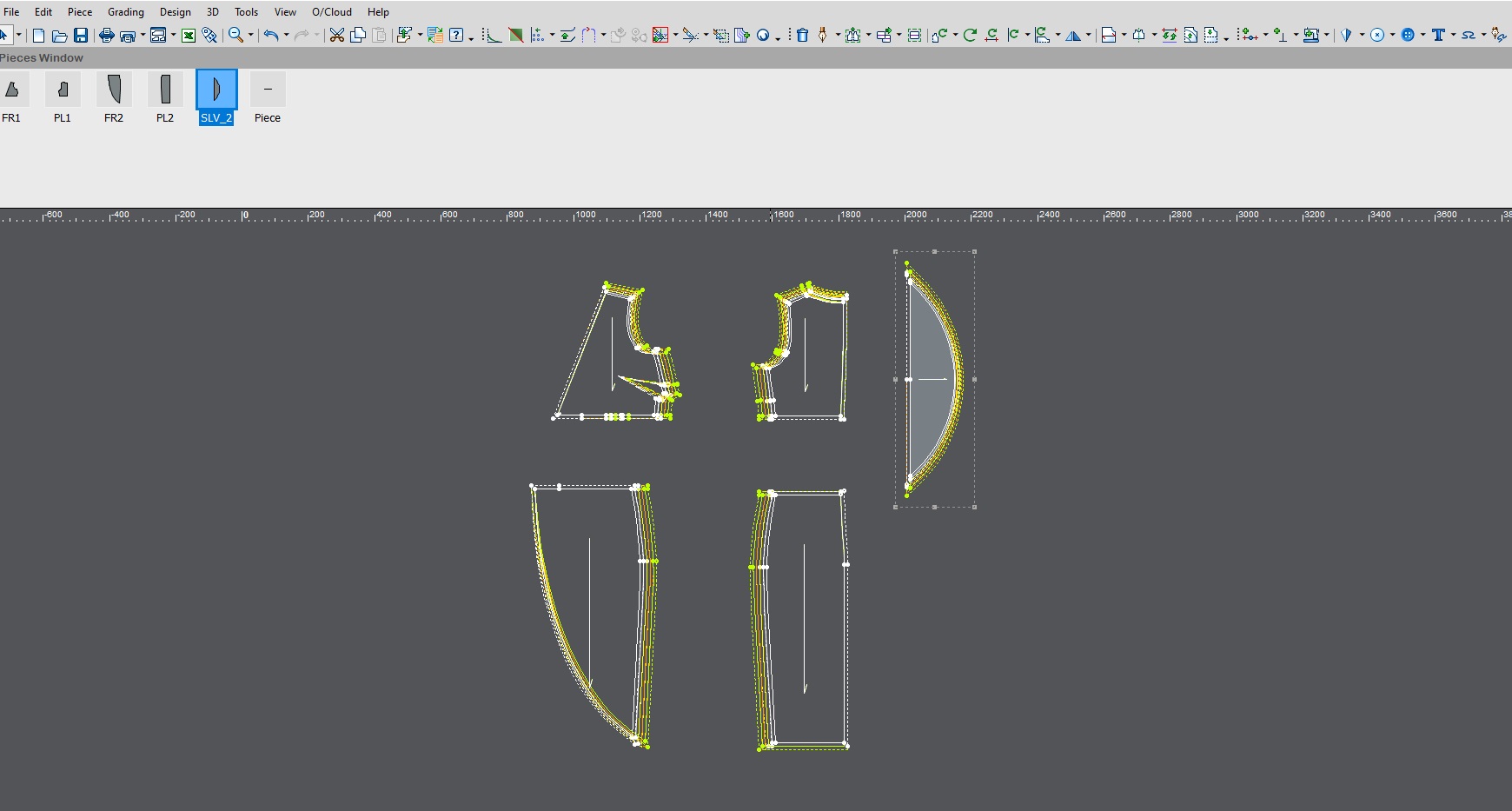

Grade

The unique program of automatic and manual grading is designed to simplify the complex process.

Flexible, combined with advanced grading functions, it makes even the most difficult deployments fast and accurate. Special grading and intermediate sizes are important for complex cases such as jackets, trousers, etc.

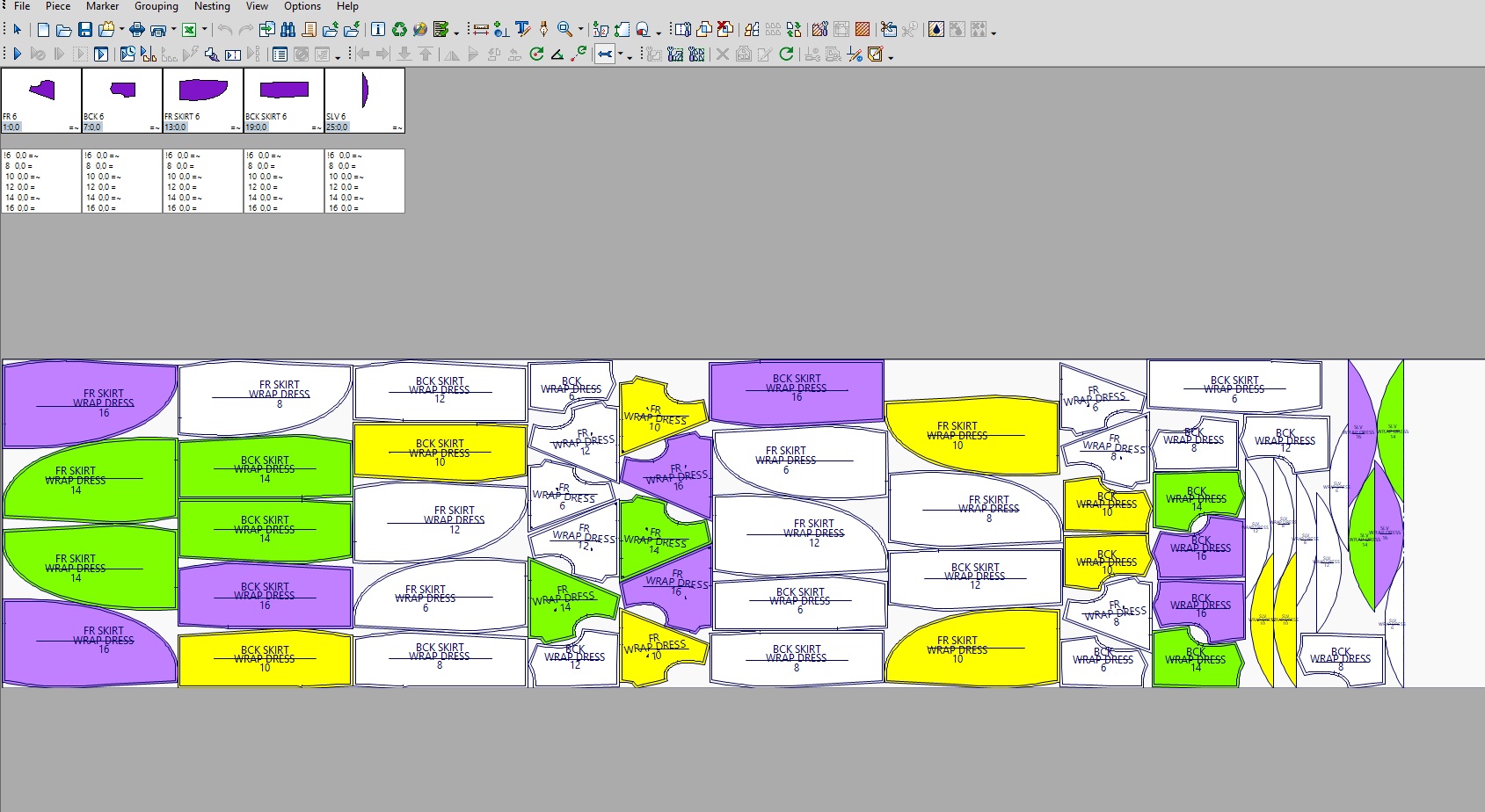

Marker Making

Marker - Marker Making

OptiTex’s Mark module is designed to maximize productivity and minimize labour and material costs.

Save time and money while cutting down on wasted fabric. Change quantities, Marker – Marker Making dimensions, number of plies, layout mode and all system parameters at any stage of operation.

Optimize cut sequence for an entire nest all at once or by individual piece. Modify cutting direction of individual pieces or use the powerful “Shared Lines” feature for common line cutting on automatic cutting equipment.

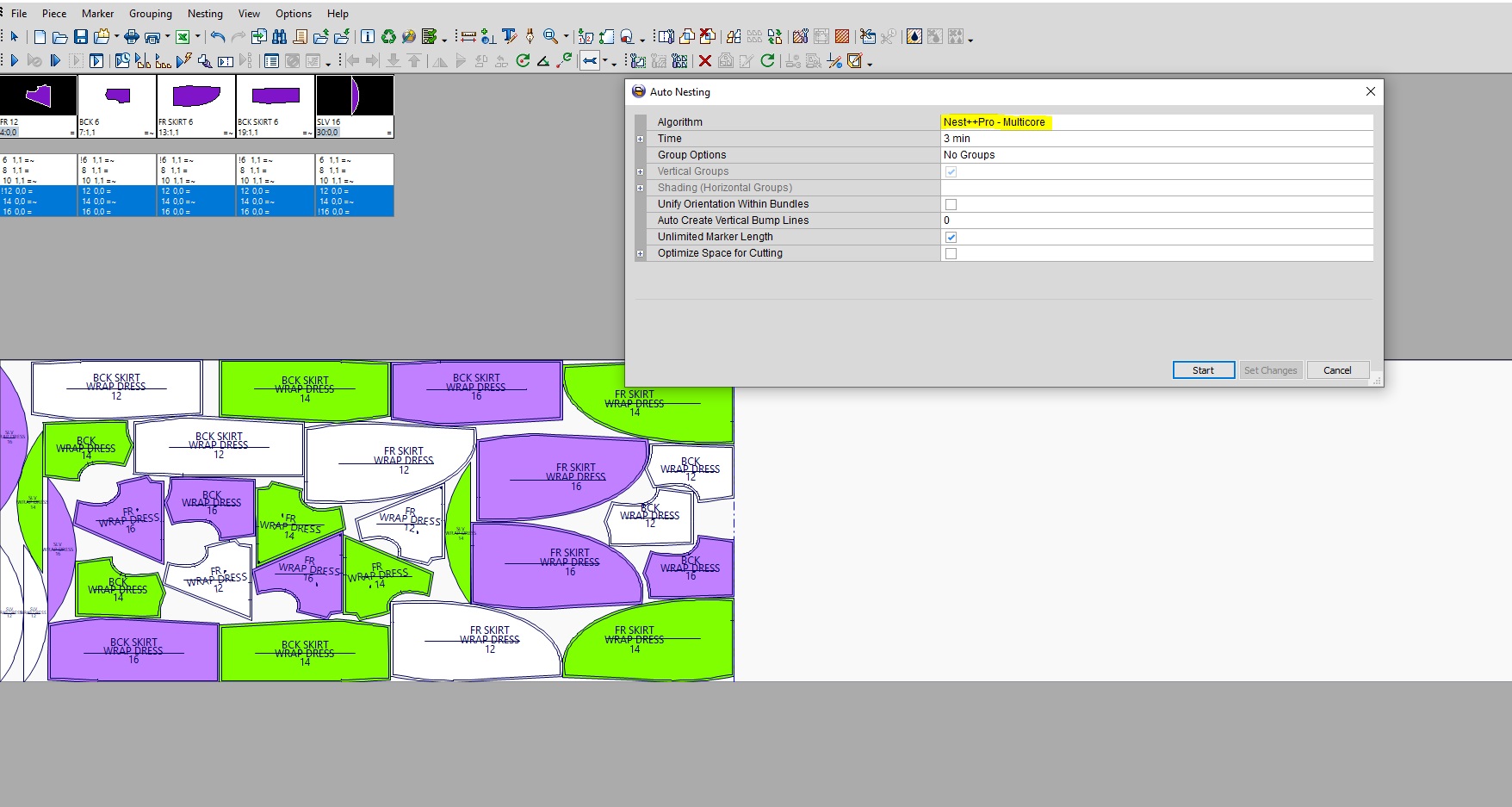

Nest ++2 - Automatic Nesting

Nest++ incorporates an intelligent algorithm for nesting, delivering comparable, and often better, results than achieved manually.

Only the basic Marker Making parameters require definition, while Nest++ takes care of the rest by automatically generating an extremely tight maker.

Nest ++2 - Automatic Nesting

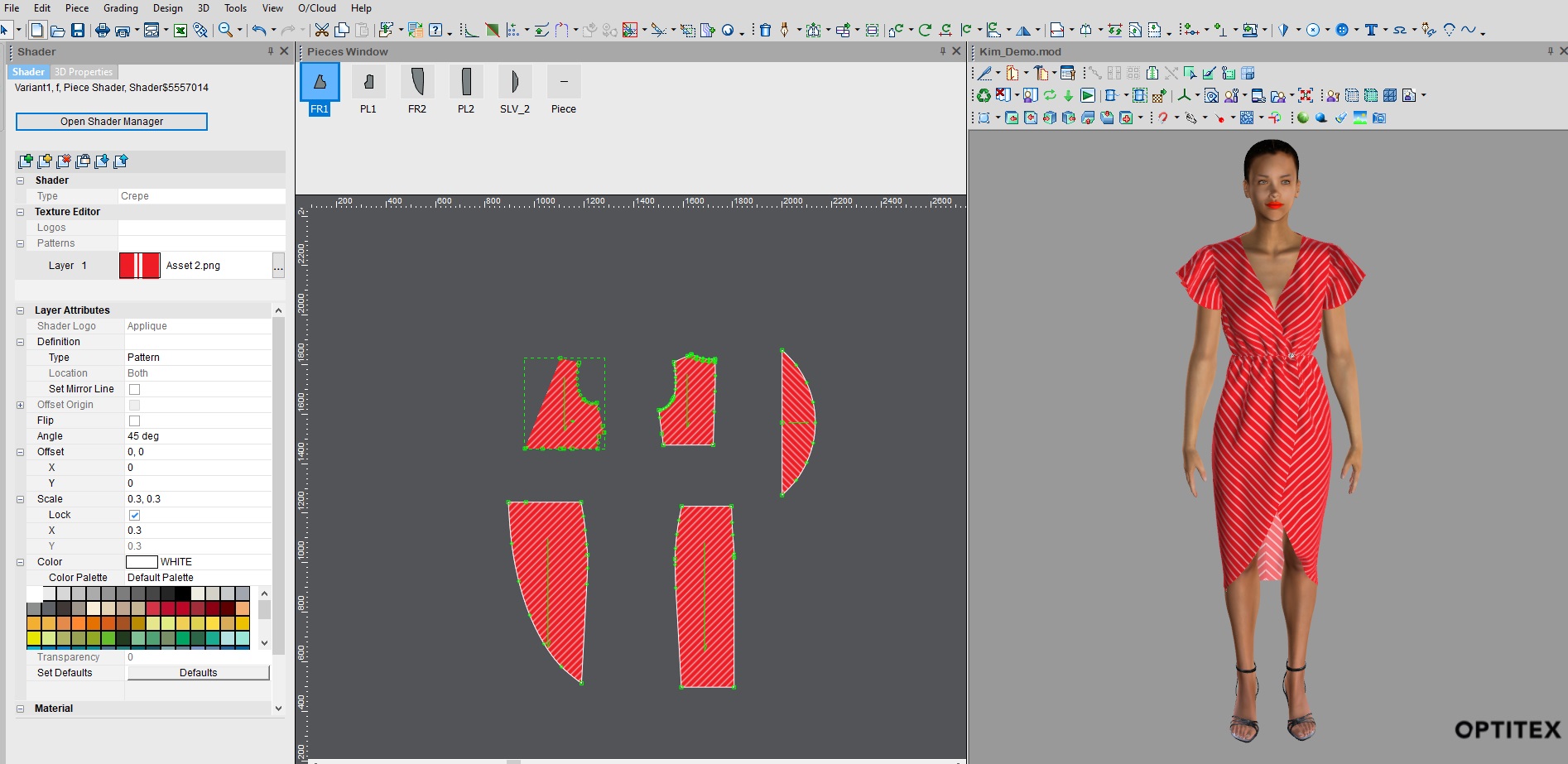

3D Runway

OptiTex Runway 3D is a realistic cloth simulation software system based on accurate CAD Design patterns and real fabric characteristics.

Any transformation can now be visible in three full dimensions.

OptiTex Runway 3D includes a highly detailed parametric mannequin with over 40 precise adjustable body measurements. Users can create specific base size mannequins, saving a great amount of time during fittings.

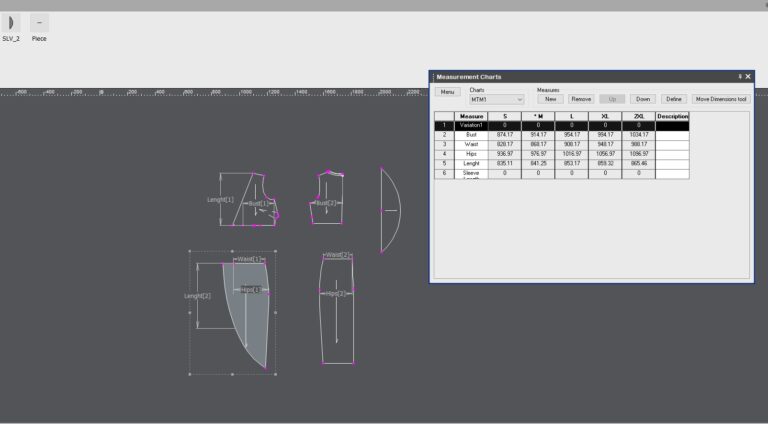

Made-to-Measure

Made-to-Measure is a somatometry program, designed to modify existing patterns to specific measurements.

It has the ability, after the input and management of the client’s data, to create a unique model in its own dimensions.

Thanks to its customized system, it can store all specifications, so that the same model can be directly adapted to another customer’s measurements, if its own ratios are entered.

We offer high quality products for the modernization of companies in the clothing industry with the supply of high technology systems that are reliable, user friendly, functional and most of all productive!

Exclusive Partner
